Software
SGS 2.0
One office. Every dataset.
SatLab Geobiz Solutions 2.0 — integrated office software with GNSS, RTK, Total Station and UAV modules, so a whole multi-instrument project processes in one place.
1 / 4
Stop switching software.
GNSS, RTK, Total Station and UAV modules in one integrated office package — data from multiple surveying products in the same project, processed in the same place.

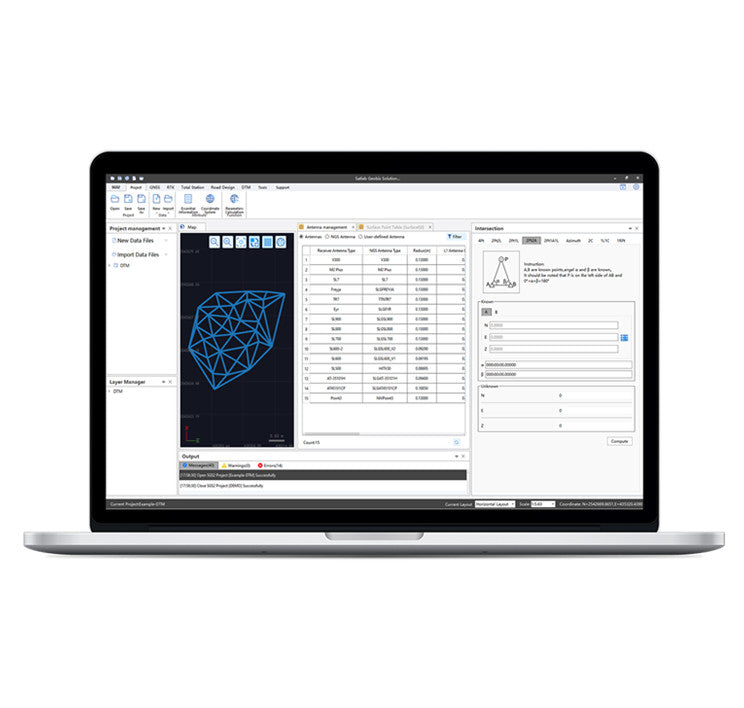

Batch it: 100+ baselines.
A reliable, faster and more accurate engine batch-processes more than 100 baselines of GPS, GLONASS, BeiDou and Galileo static data, with a predefined coordinate system and multiple manufacturer antennas.
The toolset is already inside.
Coordinate and RINEX converters, angular and distance tools, COGO calculations, a GNSS antenna manager and observation-file merging — no import/export round-trips between vendors.
In detail.
Satlab Geobiz Solutions 2.0 is an integrated office software incorporating modules such as GNSS, RTK, Total Station, and UAV. It eliminates the need to switch between different data processing software, simplifies the workflow, and improves the data processing efficiency. Satlab Geobiz Solutions 2.0 is very suitable for processing data collected from multiple types of surveying products within the same project.
Key Functions
GNSS Data Processing
Through advanced static, rapid static, PPK, and PPP algorithms to process GNSS data, and the PPK post-processing results can be used to check field coordinates.

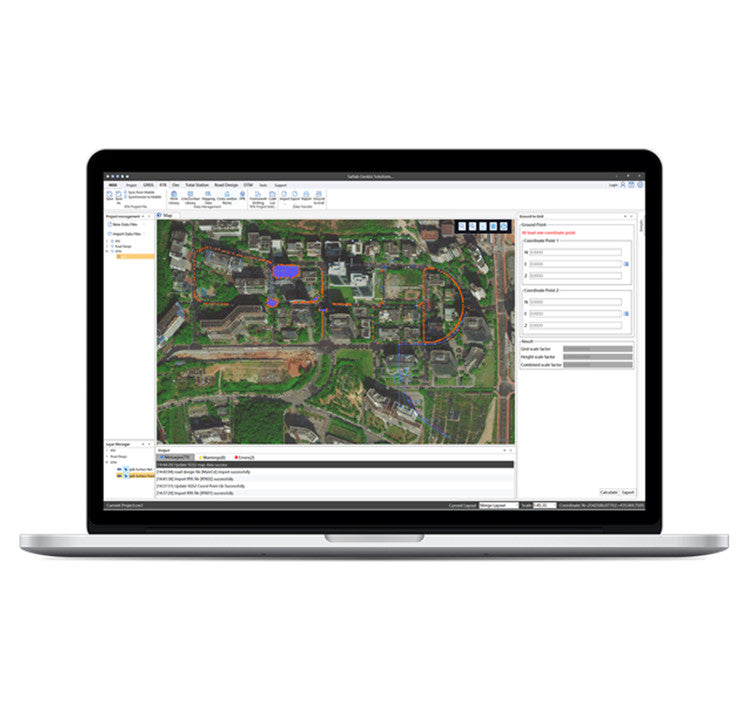

Mapping
Supports importing RTK project data, processing and sorting RTK data on a larger screen conveniently and intuitively. It supports Total Station traverse adjustment at the same time.

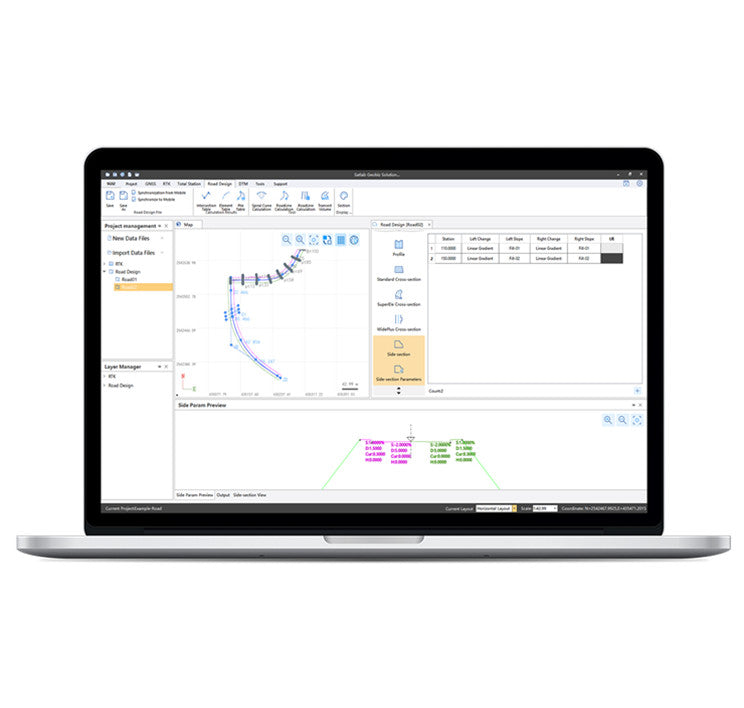

Road Design
Supports road design, preview, verification and other work on the computer side, and also supports earthwork calculation.
Tools
SGS2.0 offers an extensive toolset, including coordinate and RINEX converters, angular, distance, and various COGO calculation tools, GNSS antenna managers, and GNSS observation files merging.
Post-Processing
- Stop&Go-Static-Kinematic
- Multiple baseline processing
- Network Adjustment
- Loop closure
- PPP Processing
- Data Quality Analysis
- Rinex Conversion
Topography
- Multi-project Management
- Parameters Calculation
- Framework Shifting
- Code List
- Grid to Ground
- Traverse Adjustment
- DTM&Volumes Calculation
Tools
- Antenna Management
- Angle&Dist. Conversion
- Height Grid
- Coordinate Conversion
- Online Map
System Requirements
Operating system: Microsoft Windows 7/ 8/ 10/ 11
Processor: Intel Core i5 (Recommended), Intel Core i3 (Minimum)
RAM: 8GB (Recommended), 4GB (Minimum)
Graphics: Direct X9 compatible 2GB discrete graphics (Recommended), Direct X9 compatible integrated graphics (Minimum)
Supported Language: English/ French/ Spanish/ Portuguese/ Japanese
Features
- Intuitive workflow
- QC quality inspection
- Legend encoding
- Support RTK/ Total Station
- Road Design/ DTM work
- Online map
- Intersection
- Instruction manuals
- Property configuration
- Tolerance calculations
Practical Tools
- Height grid tool
- Coordinate system management
- Antenna management
- Rinex convert
- Parameter calculation widget
- Conversion tools
The full brochure.
PDF Download the full brochureSGS 2.0 Brochure DownloadTech Specs
- Type
- Integrated office post-processing software
- Engine
- Batch processing of 100+ static baselines
- Constellations
- GPS, GLONASS, BeiDou and Galileo
- Data types
- GNSS static, RTK, total station, road files, DTM and base maps
- Tools
- Coordinate and RINEX converters, COGO tools, GNSS antenna manager, observation file merging
Keep exploring.
See the SGS 2.0 on your own site.
The fastest way to judge it is in your own field conditions. Book a demo and our team will bring it to you — or ask about rentals.
