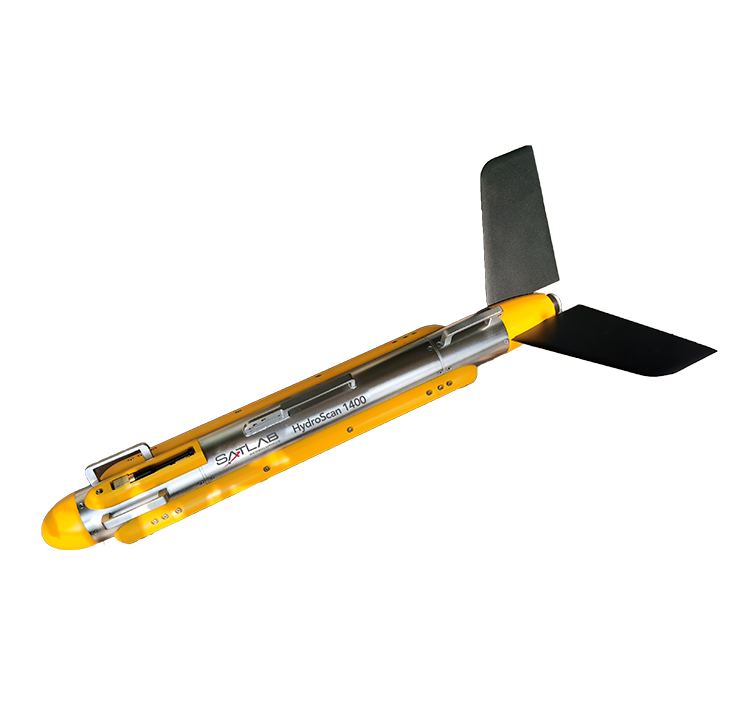

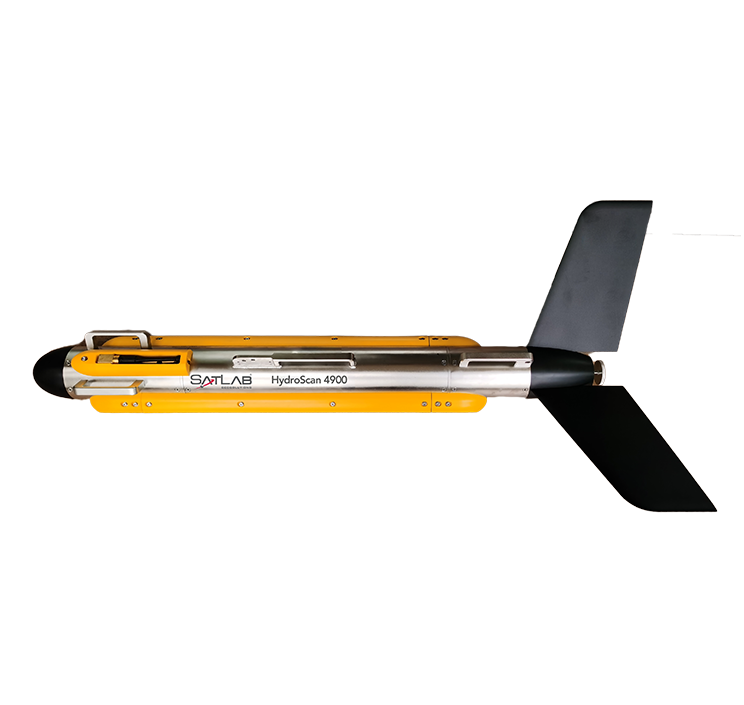

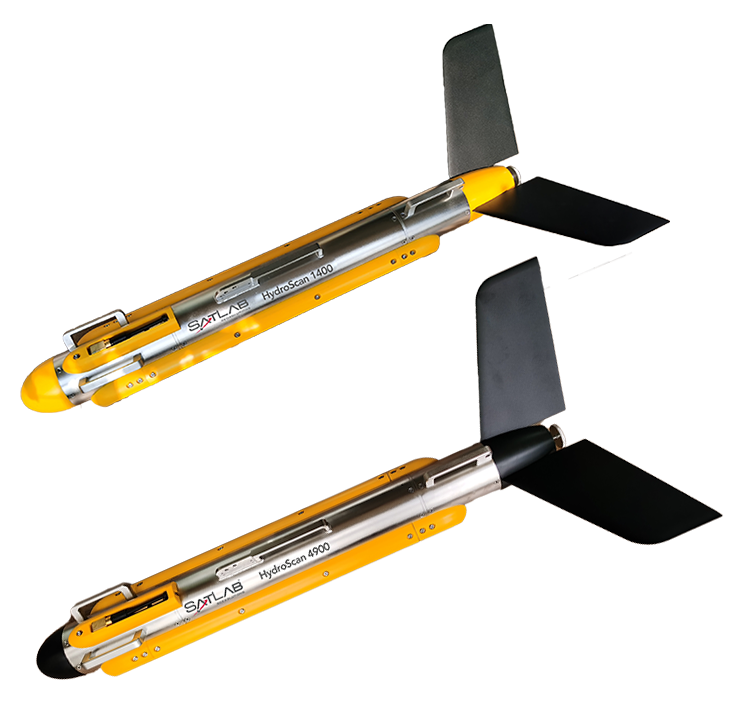

HydroScan
See the bottom. Every object on it.
A side scan sonar that switches freely between CW and CHIRP across 100, 400 and 900 kHz — dual simultaneous frequency for a clearer view of the water bottom.
1 / 3
Pick a frequency. Or two at once.
100/900 kHz, 400/900 kHz or 400 kHz modes on dual simultaneous frequency — always a suitable mode for the water, the target and the job.
CW and CHIRP, switched live.
Real-time switching adapts as conditions change: improved anti-noise performance, higher resolution and longer range, without stopping to reconfigure.
1.25 cm resolution. Small objects, found.
A beam angle down to 0.2° resolves the small stuff, while integrated heading, pitch, roll, depth and pressure sensors correct the imagery in real time.
In detail.
With the possibility to switch freely between CW and CHIRP on multiple frequencies, at 100kHz, 400kHz or 900kHz, the side scan sonar system provides a clearer view of the water bottom on dual simultaneous frequency, for object searching, dredging, and other industry applications.
Multiple Frequency Available
There are multiple frequencies available to use according to required applications. 100/900kHz, 400/900kHz and 400kHz — users can always find a suitable mode.
Real-time CW & CHIRP
Real-time switching provides an adaptive solution for users, while the anti-noise performance is improved, the resolution higher and the range longer.
Multiple Internal Sensors
By integrating the sensor for heading, pitch, roll, depth and pressure, images are corrected in real time and related reference information can be acquired to ensure operational safety.
Ultra Small Beam Angle
Beam angle can be up to 0.2°, providing resolution up to 1.25cm, so it is easy to recognize smaller objects.
Applications
- Hydrographic Surveys
- Channel/Clearance Surveys
- Search & Rescue
- Water Construction Inspections
- Geological Surveying and Mapping
- Environmental Habitat Surveys
- Cable Route & Pipeline Surveys
Tech Specs
- Frequencies
- 100 / 400 / 900 kHz (dual simultaneous frequency)
- Modes
- CW and CHIRP with real-time switching
- Beam angle
- Down to 0.2°
- Resolution
- Up to 1.25 cm
- Internal sensors
- Heading, pitch, roll, depth and pressure
Keep exploring.
See the HydroScan on your own site.
The fastest way to judge it is in your own field conditions. Book a demo and our team will bring it to you — or ask about rentals.
