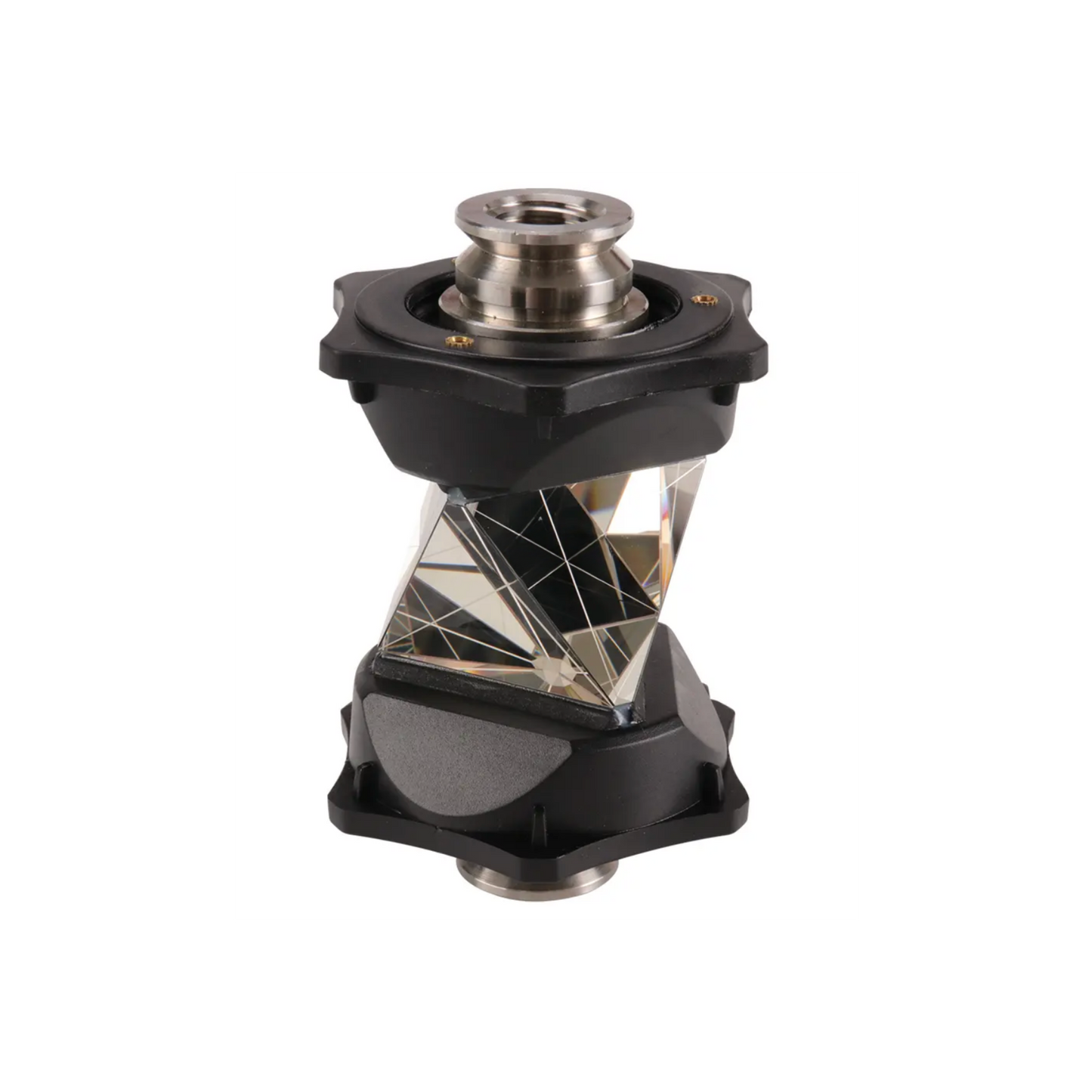

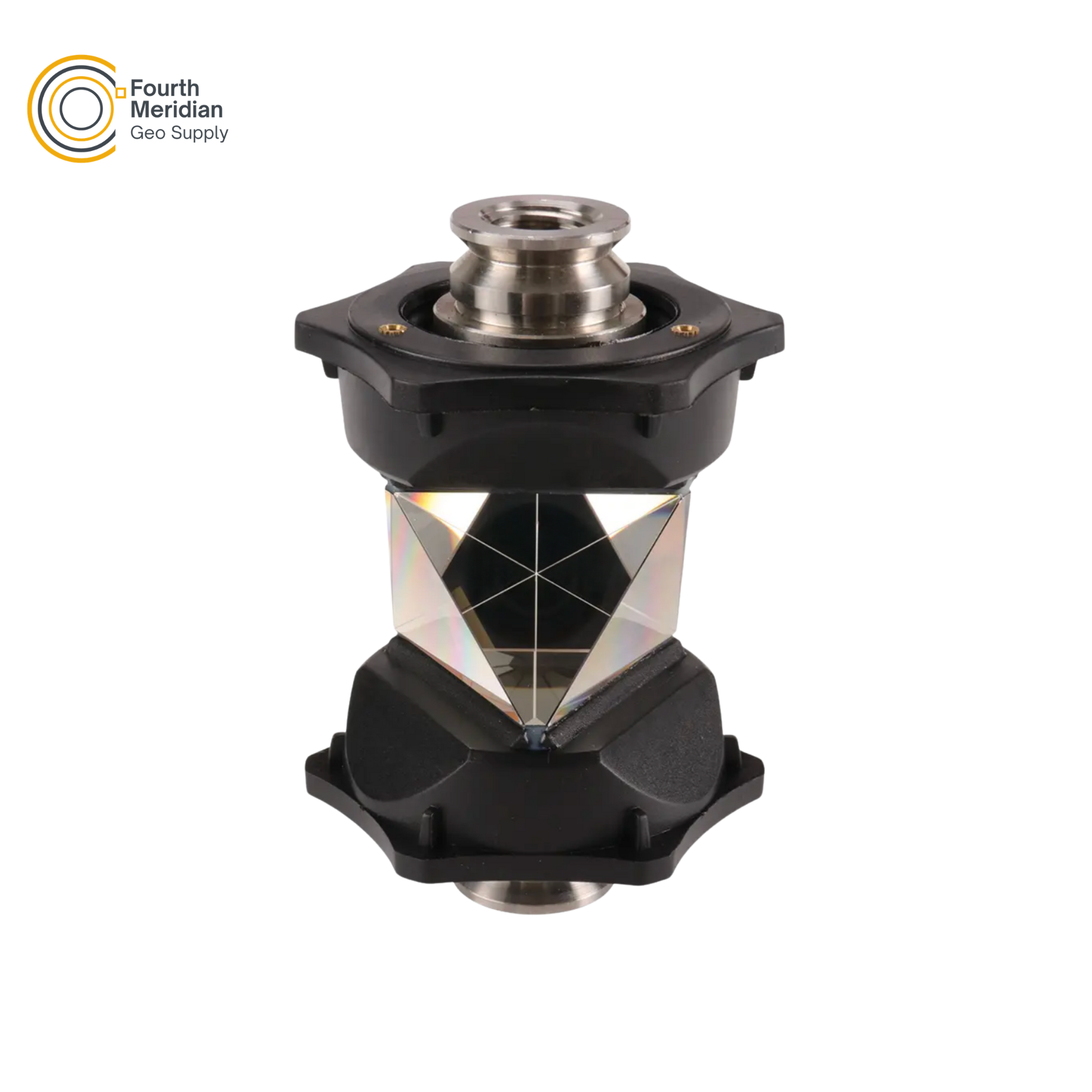

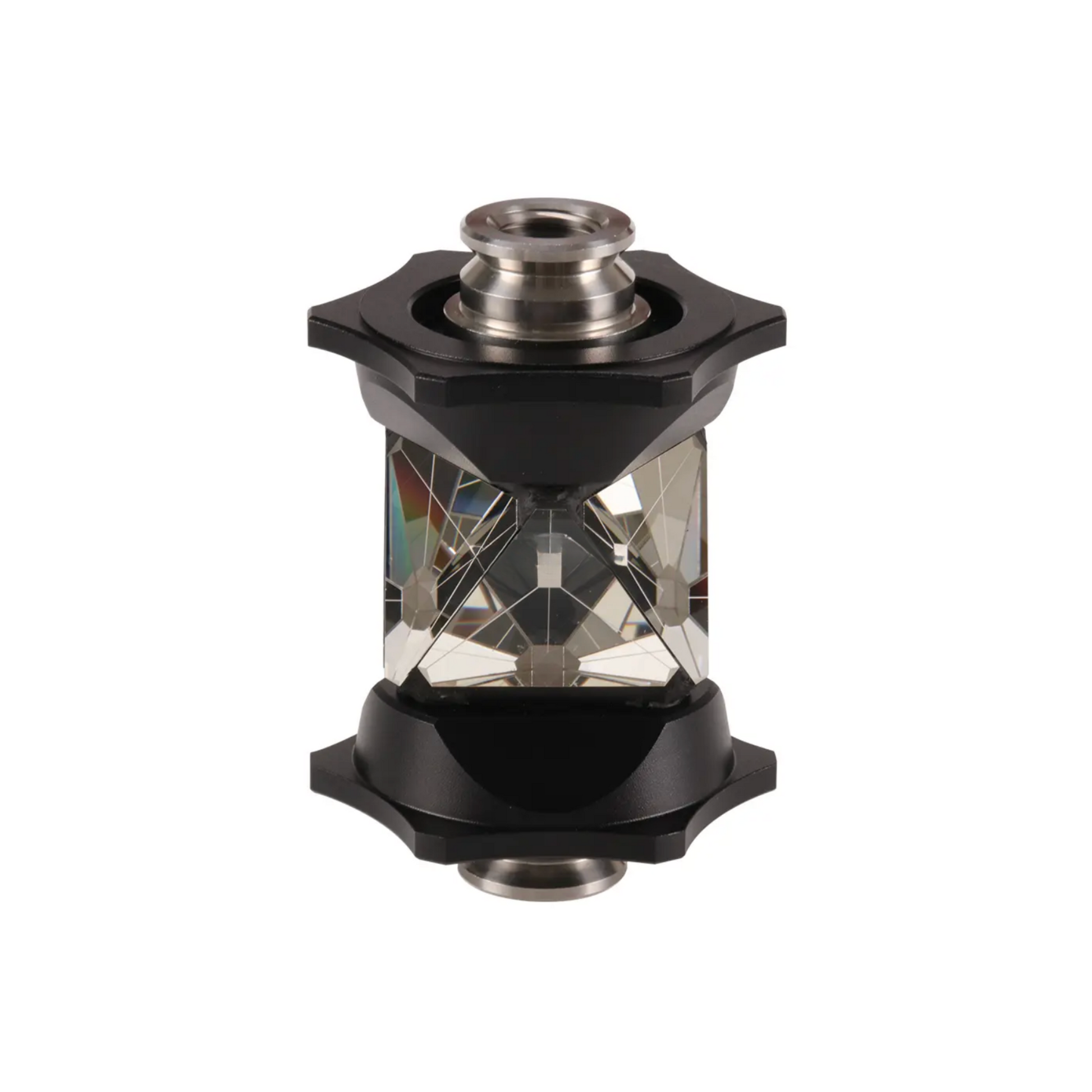

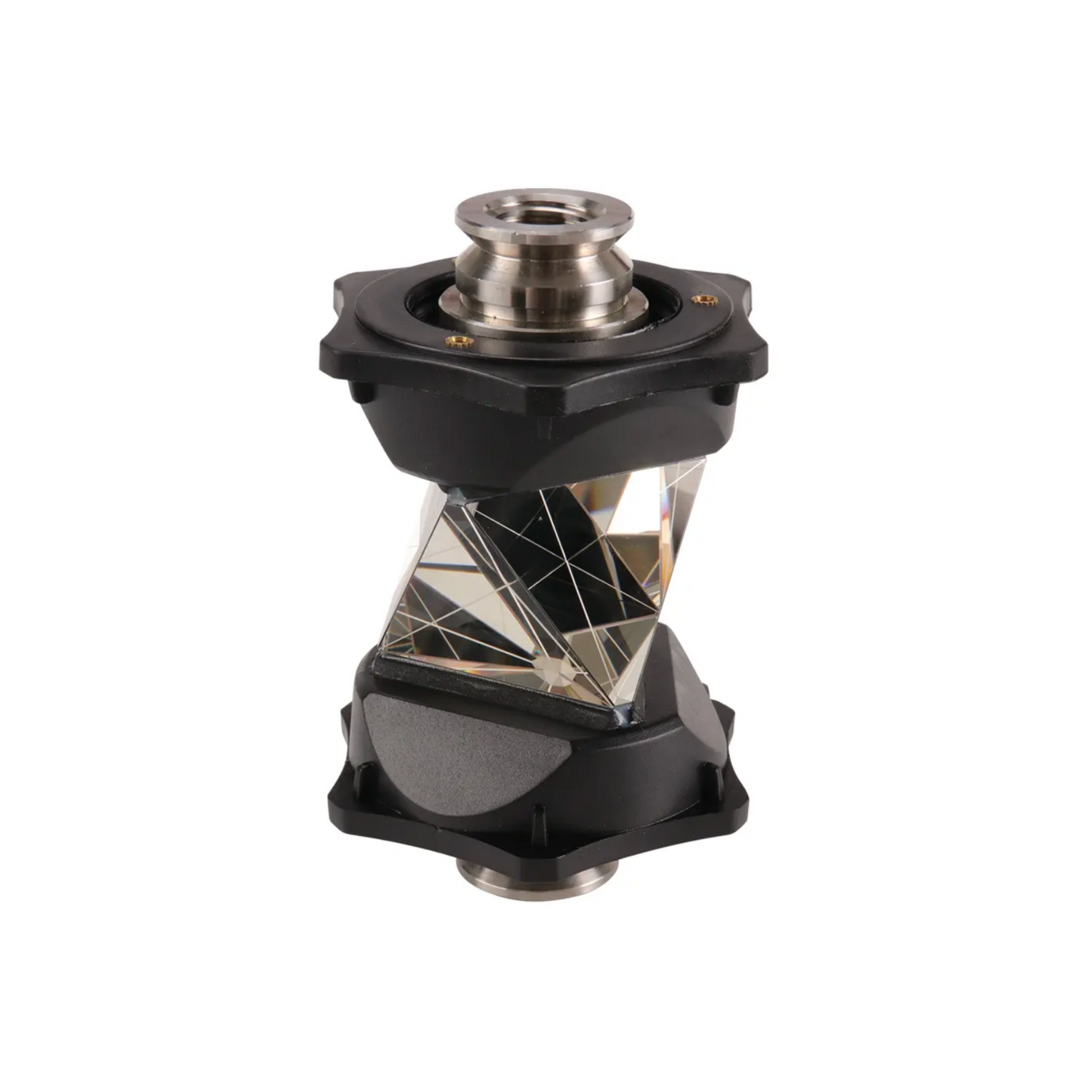

360° Prism — Metal
Silver-coated. Collision-ringed.
A Japanese-style 360° prism with six silver-coated prisms, an anti-collision ring, a -7 mm prism constant and ±1.5 mm centring accuracy — soft bag and inner box included.
1 / 3
Metal build, protected prism.
The anti-collision ring guards the six silver-coated prisms through daily operation and transport — durability for high-performance fieldwork.
Uniform reflection, any angle.
Silver coating keeps signal return strong and uniform from every direction, so the total station holds you through the whole setup.
In detail.
The 360 PRISM represents the next level of precision and durability in modern surveying. Designed as a 360° Prism with Protective Prism, this Japanese-style prism system delivers exceptional centring accuracy and stability for high-performance fieldwork. Its six silver-coated prisms provide strong signal reflection from every direction, ensuring reliable measurement results in demanding environments.
The 360 PRISM features a durable anti-collision ring, which enhances protection during daily operation and transport. Built with flexibility in mind, this 360° Prism with a -7 mm prism constant, +1.5 mm centring accuracy, and 5/8″ thread on both ends, the ATP1 360 PRISM ensures quick setup, excellent compatibility, and consistent precision. Each 360° Prism with Protective Prism comes with a soft carrying bag and inner box for safe storage.
Six Silver-coated Prisms
Six silver-coated prisms for powerful and uniform reflection from every direction.
Anti-collision Ring
Anti-collision ring for enhanced protection in field conditions, during daily operation and transport.
Precise Constants
A -7 mm prism constant and 1.5 mm centring accuracy, with 5/8″ thread on both ends for quick setup and excellent compatibility.
Tech Specs
- Prisms
- Six silver-coated prisms, 360° coverage
- Prism constant
- −7 mm
- Centring accuracy
- +1.5 mm
- Thread
- 5/8″ on both ends
- Protection
- Anti-collision ring
- Includes
- Soft carrying bag and inner box
Keep exploring.
360° Prism — Metal. $650.00
Priced, in stock and shipped from Richmond Hill, Ontario.
