Hydrography
HydroFlow
The current, profiled.
A direct-reading Acoustic Doppler Current Profiler (ADCP) — accurate, easy to use, and deployable from a trimaran, USV, buoy or seafloor mount.
1 / 6
Mount it how the job demands.
Trimaran, USV, buoy or seafloor mounting — the HydroFlow deploys on the platform the river, canal or offshore project calls for.
75 metres, 256 cells deep.
The 600 profiles to 75 m and the 1200 to 25 m, sliced into up to 256 cells — a full picture of how the water column is actually moving.
Broadband precision, simple software.
Broadband signal processing improves anti-noise performance and current accuracy, while gyro, temperature, pressure and tilt sensors feed the operation reference — all through a clear, low-learning-curve UI.
In detail.

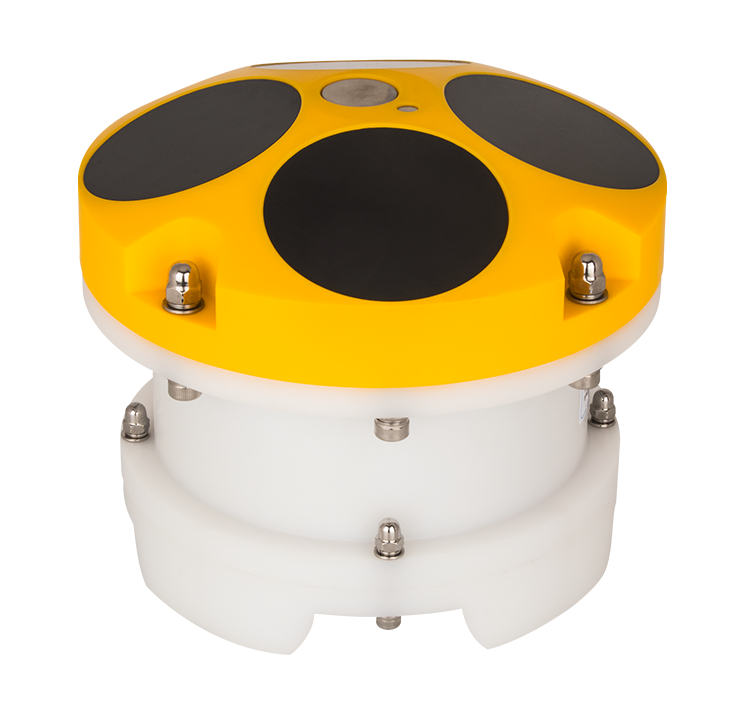

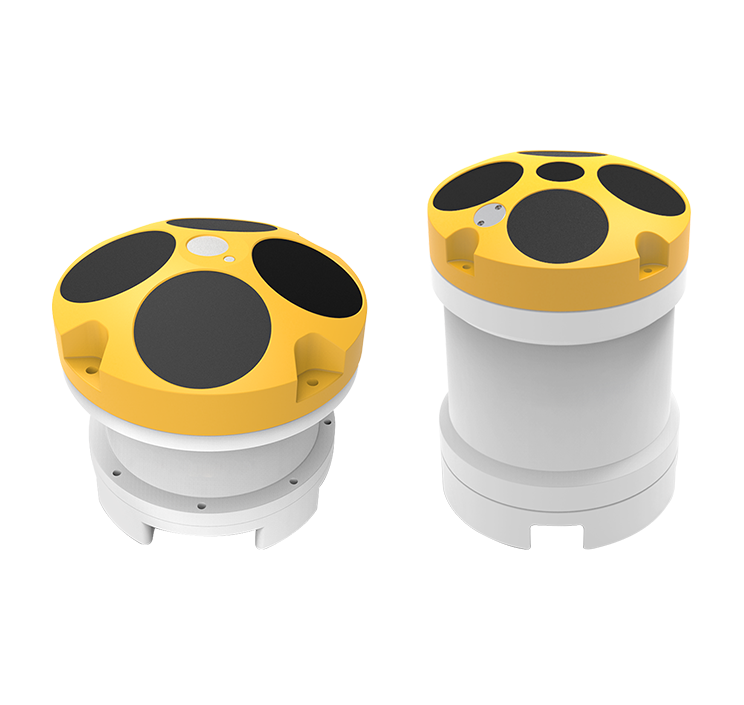

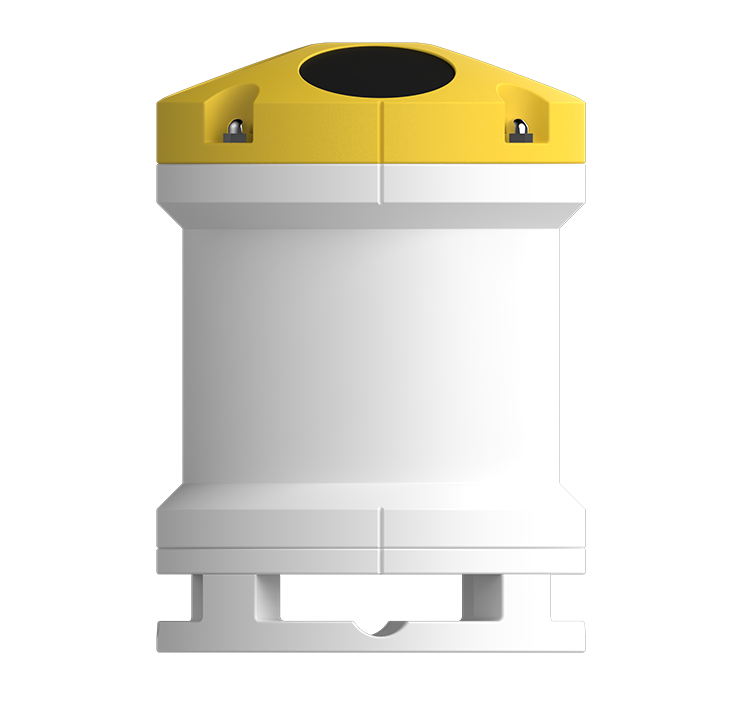

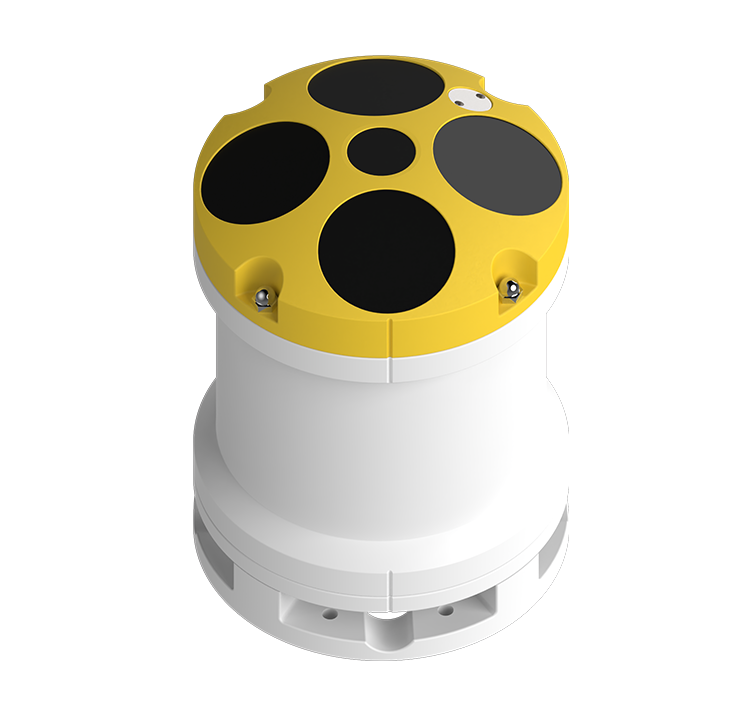

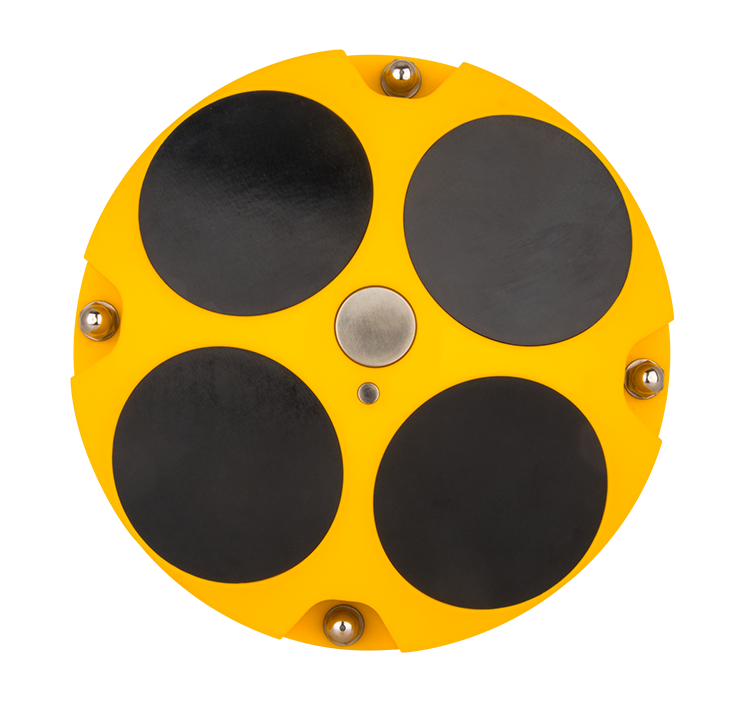

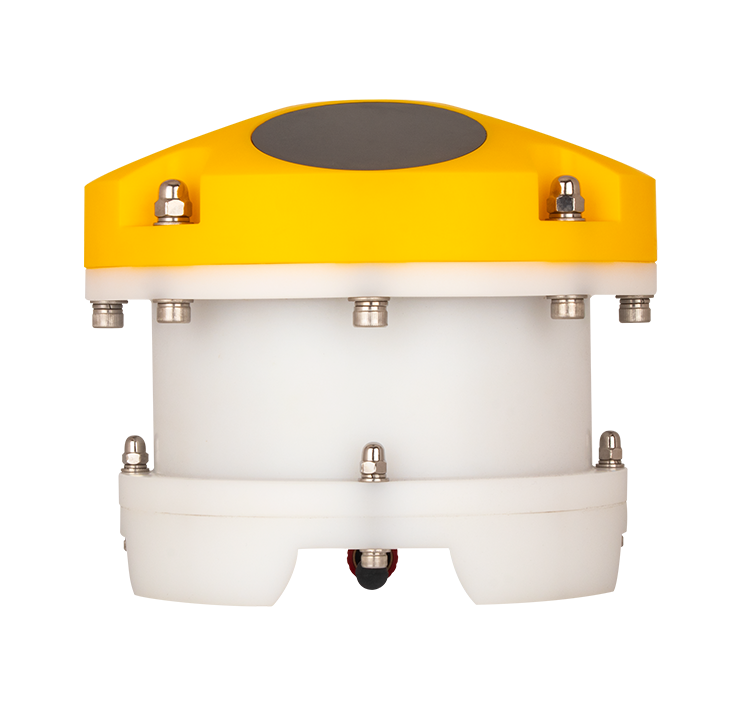

The HydroFlow series direct-reading Acoustic Doppler Current Profiler (ADCP) is an accurate and easy to use current profiling system, which can be deployed on flexible platform: trimaran, USV, buoys and seafloor mounting and so on. Providing accurate measurement with 75m/25m range, the HydroFlow 600/1200 can be widely used for monitoring and surveying discharge of rivers, canal, offshore and other engineering projects.
Multiple Built-in Sensors
Integrating the gyro, temperature, pressure and tilting sensor, HydroFlow 600/1200 offers multiple source of information for the operation reference.
Long Profiling Range, Multiple Cells
600Hz working frequency extends the current measurement range up to 75 meters (HydroFlow 1200 up to 25 m) with a maximum of 256 cells.
High Precision Current Measurement
Supported by broadband signal processing technology, the anti-noise level has been improved while the current measurement accuracy can be up to 0.25 ± 0.25 cm/s.
Easy to Use Software
Clear software working flow and UI lower the learning curve, making it easy to use.
Applications
- River Hydrology
- Irrigation Monitoring
- Environmental Impact Studies
- Fisheries Studies
- Flood Warning
- Circulation Studies
Tech Specs
- Type
- Direct-reading ADCP
- Models
- HydroFlow 600 / HydroFlow 1200
- Profiling range
- Up to 75 m (600) / 25 m (1200)
- Max cells
- 256
- Velocity accuracy
- 0.25 ± 0.25 cm/s
- Built-in sensors
- Gyro, temperature, pressure and tilt
- Deployment
- Trimaran, USV, buoy or seafloor mounting
